Industrial Kitchen and Refrigeration
Price Offer Form
| Feature | Technical Value |
|---|---|
| Product Details | |

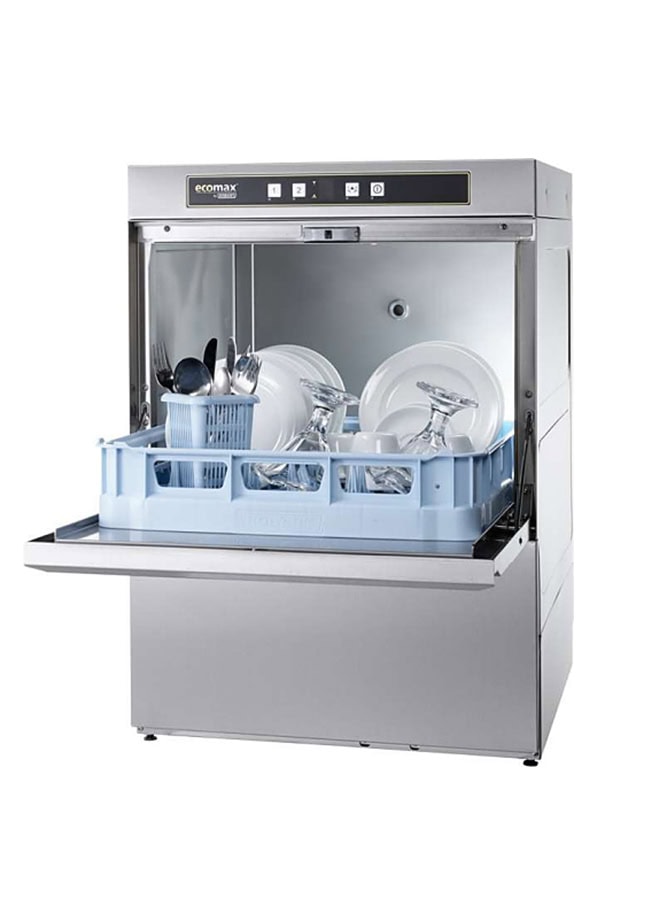

| Brand | HOBART |
| Series | ECOMAX |
| Model | 504-60B |
| Machine Type | Undercounter commercial dishwasher |
| Made In | Germany |
| Washing Performance | |
| Hourly Rack Capacity | 60 racks/hour |
| Hourly Plate Capacity | 1,080 plates/hour (theoretical) |
| Cycle Times | 60 sec (quick) – 150 sec |
| Control System | Easy-to-use electronic controls |
| Temperature Display | Digital temperature displays |
| Rack Size | Suitable for all racks up to 500 x 500 mm |
| Rack System | Stainless steel grid rack, supports all rack sizes |
| Loading Height (Usable Chamber Height) | 360 mm |
| Water and Temperature | |
| Water Consumption | 2.3 litres (per rack) |
| Rinse System | Recirculating, low rinse volume (2.3 litres) |
| Tank Capacity | 25 litres |
| Wash Tank Temperature | 55 – 60 °C |
| Rinse Water Temperature | Minimum 82 °C |
| Low Temperature Cut-Out (Thermostat) | Active: Yes |
| Electrical and Connection Values | |
| Power Supply | 240 V / 50 Hz / 1 Phase – 15 A |
| Tank Heating | 1.8 kW |
| Booster Loading | 1.9 kW |
| Total Loading | 2.4 kW (15 A single phase) |
| Pump Capacity | 340 W |
| Dimensions | |
| Width | 576 mm |
| Depth | 604 mm |
| Height | 820 mm |
| Construction and Installation Features | |
| Door Design | Double-skinned; provides strength and durability, reduces heat loss, offers sound insulation |
| Wash and Rinse Arms | Patented wide-angle FAN nozzle polypropylene arms |
| Self-Cleaning | Self-cleaning cycle at the drain outlet |
| Filter / Strainer | Full-width wash tank strainers and wash pump inlet strainer |
| Installation | "Plug and play"; fast and easy installation |
| Mobility and Cleaning Ease | Rear wheels and adjustable front feet |
| Standard Delivery Contents | |
| Plate Rack | 1 piece |
| Cutlery Holder | 1 piece |
| Fill and Drain Hoses | Included |
| Pump Drain | Included |
| Chemical Dispensers | Included |
| Power Cable / Plug | Included |
